Single pivot arm (325mm) mounting options
Mounting solution
Single pivot arm (325mm) mounting options
Mounting solution
Learn more about single pivot arm (325mm) wall mounting options, from ITD, for the IntelliVue MX400 and MX450 patient monitors.
Features
ITD part number: TH.2117.991

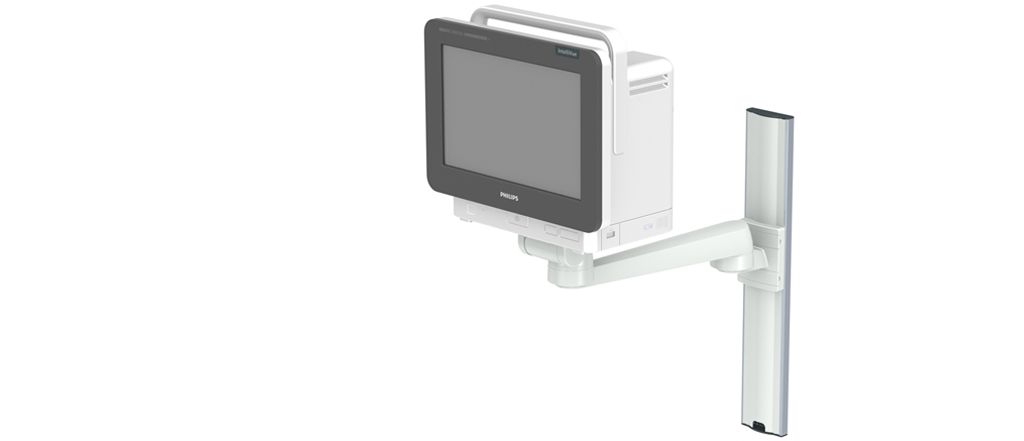

Single pivot arm on ITD support extrusion. The mounting kit includes: adapter for ITD support extrusions, arm length 325mm, tilt and swivel unit with an adapter for IntelliVue MX400 and MX450 patient monitors.
ITD part no. TH.2121.991
Single pivot arm on pole, with diameter 35-38mm. The mounting kit includes: adapter for pole D 35-38mm, arm length 325mm; tilt and swivel unit with an adapter for IntelliVue MX400 and MX450 patient monitors.
ITD part number: TH.2161.991
Single pivot arm on horizontal standard runner. The mounting kit includes: adapter for ITD horizontal standard runner, arm length 325mm, tilt and swivel unit with an adapter for IntelliVue MX400 and MX450 patient monitors.
Specifications
- Specifications
- Tested to
- DIN EN 60601-1:2006
- Maximum load, arm
- 23 kg (50.6 lbs)
- Maximum load, tilt and swivel unit
- 14 kg (30.8 lbs)
- Finish
- RAL 7035; light grey, powder coated
