Double pivot arm
Mounting solution
Double pivot arm
Mounting solution
Learn more about double pivot arm (250mm+250mm) wall mounting options with a keyboard holder, from ITD, for the IntelliVue MP20 and MP30 patient monitors.
Features
ITD part number: TH.2258.991

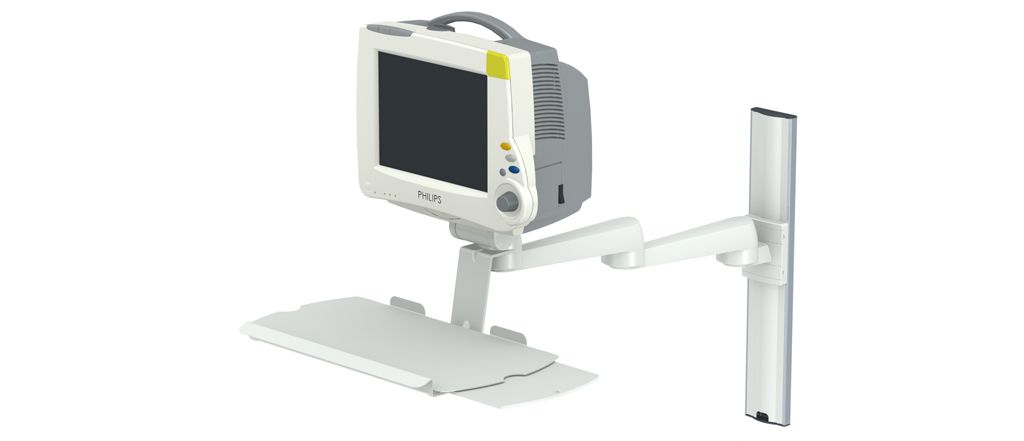

Double pivot arm with keyboard holder on horizontal standard runner. The mounting kit includes: adapter for ITD horizontal standard runner, arm length 250mm+250mm, tilt and swivel unit with an adapter for IntelliVue MP20 and MP30 patient monitors, keyboard holder.
ITD part number TH.2246.991
Double pivot arm with keyboard holder on GCX wall channel. The mounting kit includes: adapter for GCX wall channel; arm length 250mm+250mm, tilt and swivel unit with adapter for IntelliVue MP20 and MP30 patient monitors, keyboard holder.
ITD part no. TH.2244.991
Double pivot arm with keyboard holder on pole, with diameter 35-38mm. The mounting kit includes: adapter for pole D 35-38mm, arm length 250mm+250mm; tilt and swivel unit with an adapter for IntelliVue MP20 and MP30 patient monitors, keyboard holder.
Specifications
- Specifications
- Tested to
- DIN EN 60601-1:2006
- Maximum load, arm
- 18 kg (39.6 lbs)
- Maximum load, tilt and swivel unit
- 14 kg (30.8 lbs)
- Maximum load, keyboard holder
- 5 kg (11 lbs), distributed load.
- Finish
- RAL 7035; light grey, powder coated
