Double pivot arm
Mounting solution
Double pivot arm
Mounting solution
Learn more about double pivot arm (325mm+325mm) wall mounting options with a keyboard holder, from ITD, for the IntelliVue MP5 patient monitors.
Features
ITD part number TH.2247.991

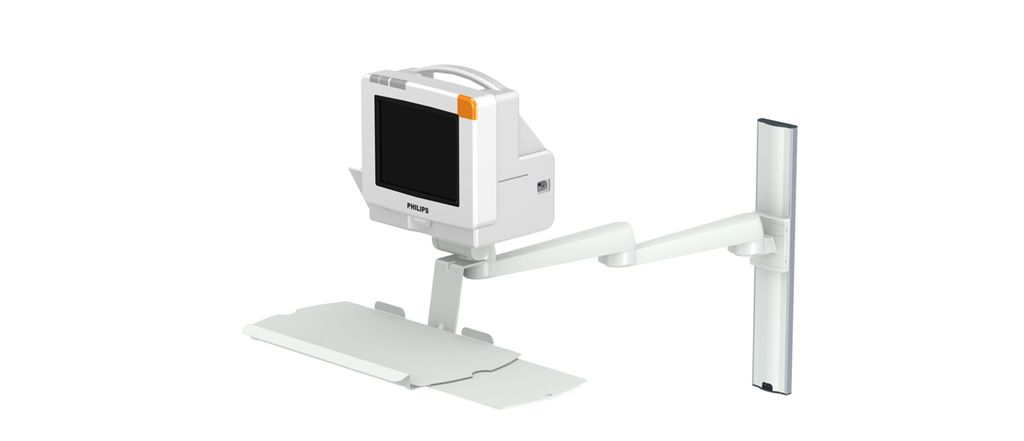

Double pivot arm with keyboard holder on GCX wall channel. The mounting kit includes: adapter for GCX wall channel; arm length 325mm+325mm, tilt and swivel unit with adapter for IntelliVue MP5 patient monitors, keyboard holder.
ITD part number: TH.2241.991
Double pivot arm with keyboard holder on ITD support extrusion. The mounting kit includes: adapter for ITD support extrusions, arm length 325mm+325mm, tilt and swivel unit with an adapter for IntelliVue MP5 patient monitors, keyboard holder.
ITD part number: TH.2259.991
Double pivot arm with keyboard holder on horizontal standard runner. The mounting kit includes: adapter for ITD horizontal standard runner, arm length 325mm+325mm, tilt and swivel unit with an adapter for IntelliVue MP5 patient monitors, keyboard holder.
Specifications
- Specifications
- Tested to
- DIN EN 60601-1:2006
- Maximum load, arm
- 18 kg (39.6 lbs)
- Maximum load, tilt and swivel unit
- 14 kg (30.8 lbs)
- Maximum load, keyboard holder
- 5 kg (11 lbs), distributed load.
- Finish
- RAL 7035; light grey, powder coated
