TightRail Sub-C
Mechanical rotating dilator sheath
  • Flexible shaft, bidirectional mechanism and shielded dilating blade provide critical
control and precision during lead extraction

TightRail Sub-C

Mechanical rotating dilator sheath
TightRail Sub-C is specifically designed for the challenges of the subclavian region, including vessel entry when fibrosis and calcium are present.

Clinical image gallery

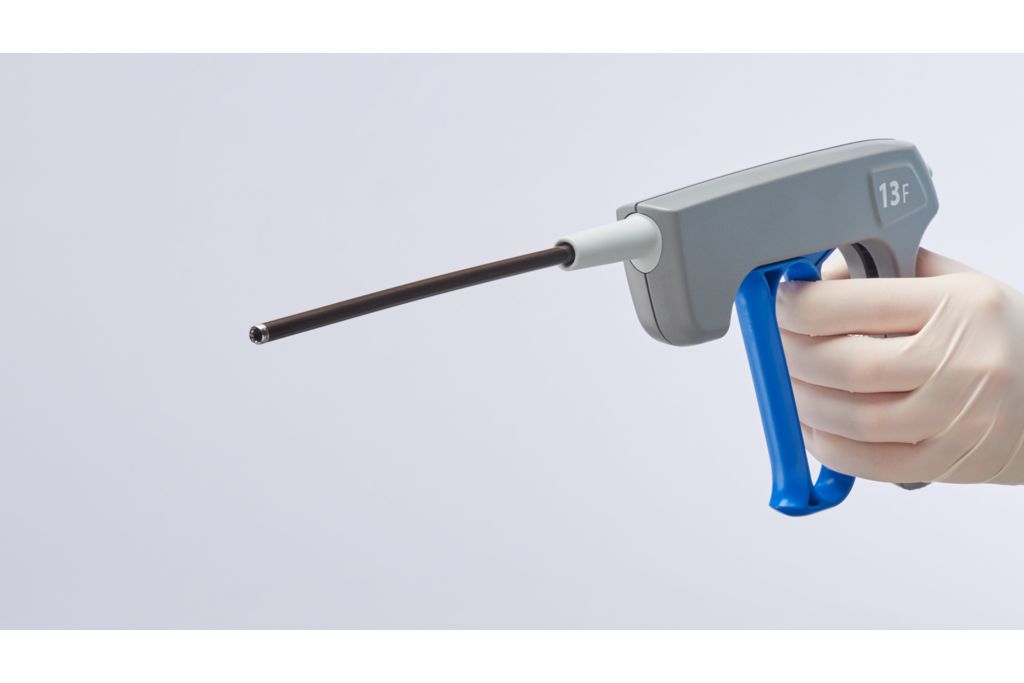

  • TightRail Sub-C mechanical
rotating dilator sheath
    TightRail Sub-C mechanical rotating dilator sheath
Features

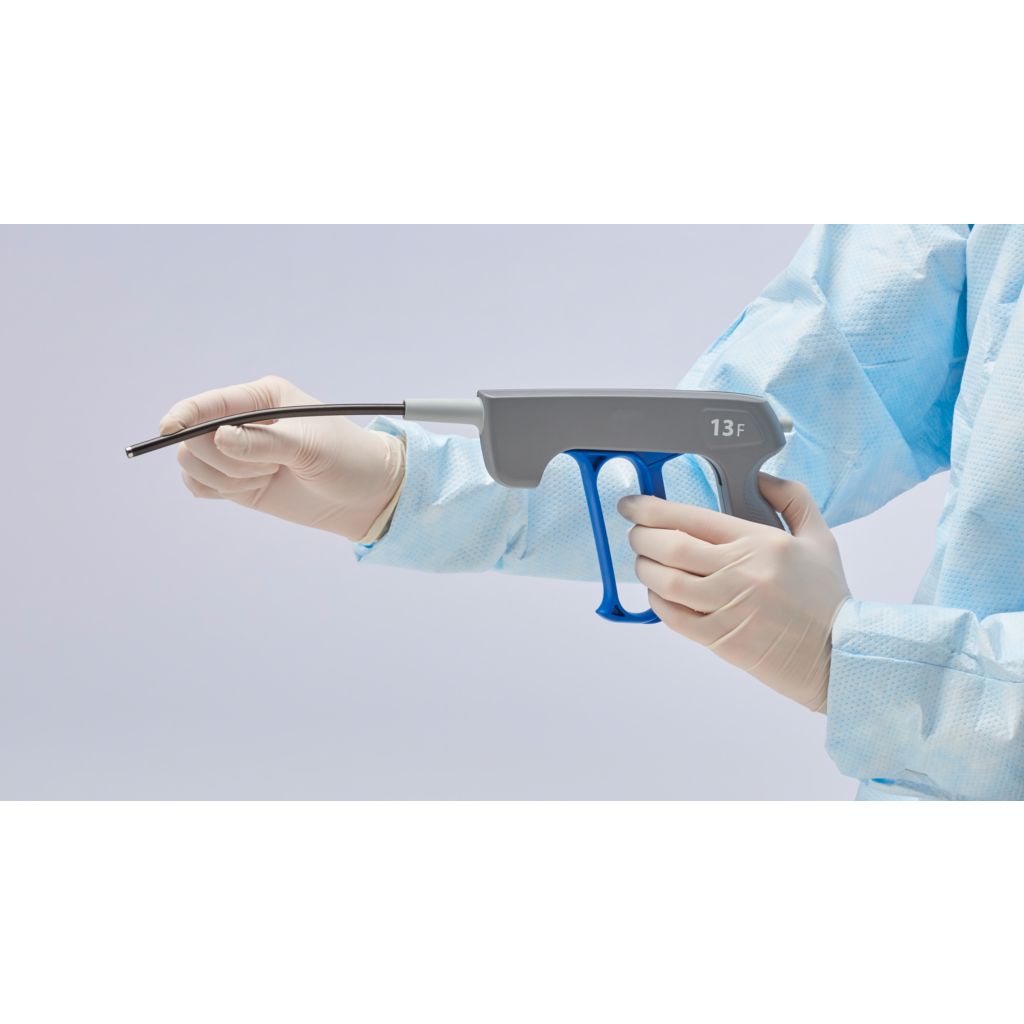

Trackability
A flexible tip for trackability and ease of navigation under the clavicle
Trackability

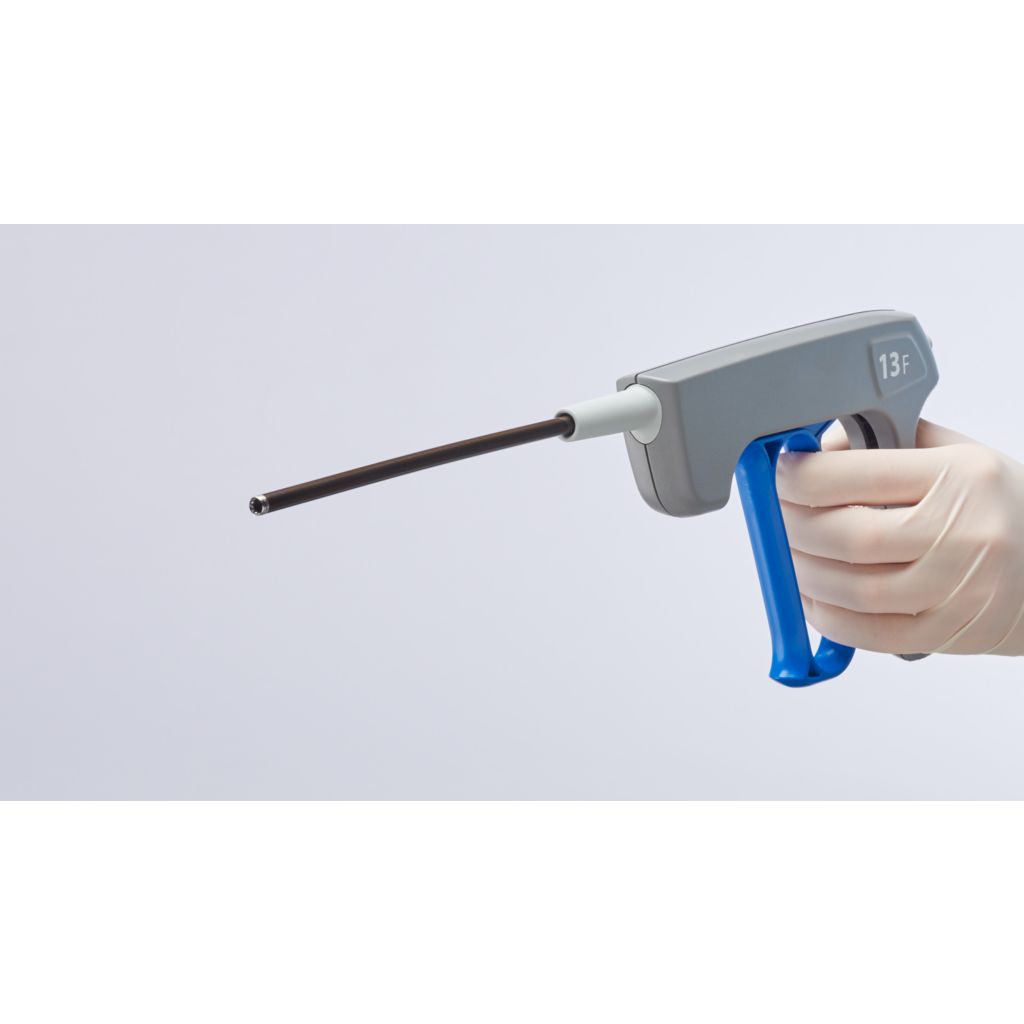

Pushability
A short, stiff shaft at base for pushability
Pushability

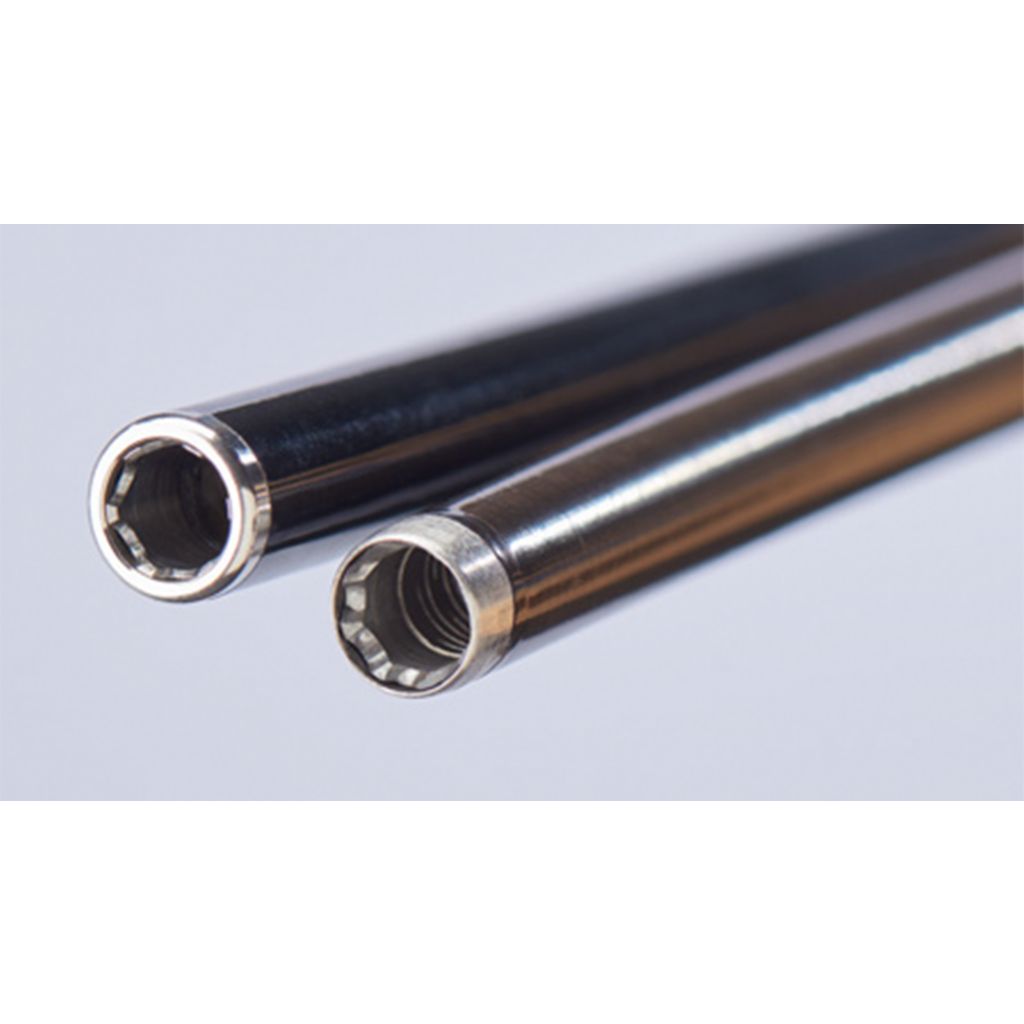

Efficient dilation
Re-designed blade and low profile tip for efficient dilation in the subclavian region
Efficient dilation


Specifications
  • Model number 560-009
    Size
    9F
    Device inner diameter
    9.1F / 0.119" / 3.0 mm
    Device outer diameter
    14.4F / 0.187" / 4.8 mm
    Outer sheath outer diameter
    18.9F / 0.245" / 6.3 mm
    Working length
    6.1" / 15.5 cm
  • Model number 560-011
    Size
    11F
    Device inner diameter
    11.1F / 0.145" / 3.6 mm
    Device outer diameter
    16.4F / 0.213" / 5.5 mm
    Outer sheath outer diameter
    20.9F / 0.271" / 6.9 mm
    Working length
    6.1" / 15.5 cm
  • Model number 560-013
    Size
    13F
    Device inner diameter
    13.1F / 0.171" / 4.3 mm
    Device outer diameter
    18.4F / 0.239" / 6.1 mm
    Outer sheath outer diameter
    22.9F / 0.297" / 7.6 mm
    Working length
    6.1" / 15.5 cm

Documentation

Product brochure
PDF|1.71 MB
TightRail Sub-C mechanical rotating dilator sheath product brochure
PDF|1.90 MB
